Swam Blowers, Boosters and Vacuum Pumps
Innovative Engineering of Industrial Air and Gas Pressure and Vacuum Products
- Internationally recognised company with 4 manufacturing plants.
- Providing engineered, designed and manufactured solutions to meet the requirements for modern processes.
- Each unit is “hot run tested” for 4-6 continuous hours, up to a motor capacity of 1,000 kW.
- Performance test reports supplied as standard.
- Products are manufactured under ISO standards to meet ISO, BSI, EU, API and Ex approvals.
- Manufacturing includes the full range of process compatible materials.

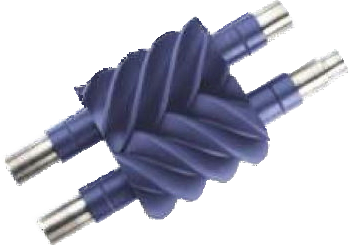

- Blowers – Twin and Tri-Lobe Capacity: Pressure up to 1.1kg/cm² g single stage. 2.1kg/cm² g two stage. Suitable for air and gas flow up to 65,000 m³/hr.
- Port Sizes: Standard from 50mm up to 600mm NB or to your requirements.

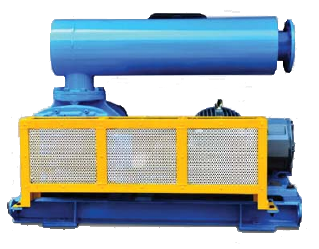

- Blower Systems & Packages: Tailor made to suit client requirements.
Vacuum Products:
- Vacuum Boosters: Capacity up to 52,000 m³/h & Vacuum down to 10-3 microns.

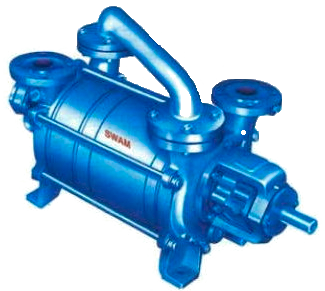

- Liquid Ring Vacuum Pumps: Up to 30,000 m³/h
- Oil Sealed / Oil Lubricated Vacuum Pumps: from 11 m³/h up to 540 m³/h and ultimate vacuum 5 x 10-4 Torr.
- Vacuum Systems & Packages: Tailor made to suit client requirements
Industries
- All Air and Gases : Off Gas, Bio-Gas,
- Process Gas: Hydrogen, Hydrocarbon, Nitrogen, Helium, Carbon-Dioxide, H2S and other gasses.
Applications
- Waste Water Treatment, Aeration Mixing
- Chemical, Transfer, Mixing, Digestion
- Pneumatic Conveying, Food Contact, Powders, Cutting Air Knife
- Mining, Mineral Processing, Dairy, Sugar, Steel Manufacturing
- Aluminium Smelters, Petrochemical, Bio-gas, Combustion equipment

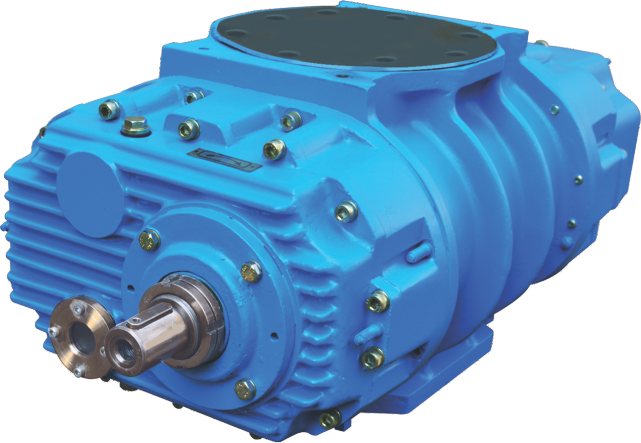

- Transport- conveying-Truck Vacuum and OEM.
