Design 5701

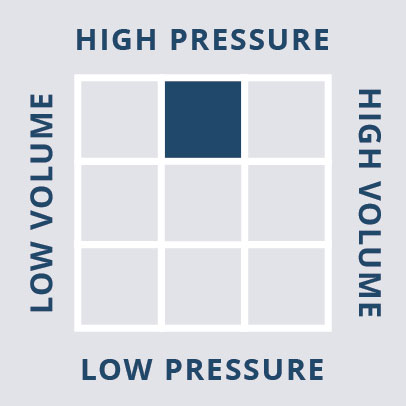

Design 5701 is a high efficiency robust industrial airfoil fan designed to provide large volumes of air at high static pressures. Possible uses include forced draft, induced draft, baghouse exhaust etc. Illustrated is a process air fan installed in the USA, incorporating high temperature variable inlet vanes and a cooling fin – 930mm diameter 55kW.

  • Available in coupling, direct or belt drive
  • Single or double width configurations
  • Accessories include inlet boxes, water cooled bearings, variable inlet vanes, insulated pins, etc.
  • Volumes to 300m3/s
  • Static pressures to 25,000P
