Fixed Pitch Belt Drive

Fixed Pitch Belt Drive

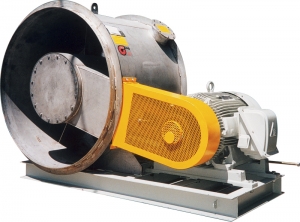

An economical solution for moving large volumes of air, these fans are ideal for process air where corrosive or high temperature gases are encountered. Illustrated is a fan used in a minerals processing plant, fitted with 304 stainless steel casing and impeller.

  • Optional unique “clamshell” design for internal access
  • Available for hazardous location
  • Multi bladed design 2å24 blades
  • Taper locking or throughbore hub
  • High and low hub ratio options available
  • Volumes to 250m3/s
  • Static pressures to 2000Pa
