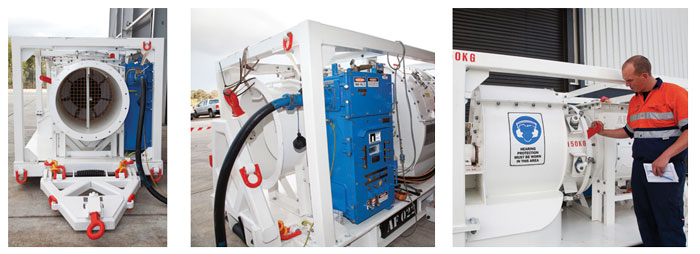

Hurricane Mine Auxiliary Fans

The AirEng ‘Hurricane’ range of fans showcases the latest developments in underground mining ventilation technology.

Our ‘Hurricane’ Fans are Auxiliary Mining Fans used in underground coal mines to supplement primary fan ventilation. They boost the air flow if the existing air flow is not sufficient. ‘Hurricane’ Mine Auxiliary Fans can be used as either forcing systems where fresh air is pushed into mine headings or exhausting systems that draw out contaminated air.


Hurricane Coal Mine Auxiliary Fans – Standard Features

Standard units to 30m^3/s, custom units also available.

  • Heavy Duty Construction
  • Proactive Customer Support
  • Designed and Manufactured by Specialised Experienced Industrial Fan or Blower Company
  • Tested to ISO5801 & BS848: Part 1: 1980, Class A,
    Type D test. (Highest Standard Available)
  • Heavy Duty Motor & Bearing Pedestal
  • AS/NZ 4871:2000 Compliance
  • Lower Noise Operation
  • Electrically Tested in AS3800 Certified Workshop
  • 10mm Plate Mild Steel Fan Casing
  • High Efficiency Inlet Vane Design
  • Stainless Steel Machined Motor & Bearing Pads
  • Site Operation & Maintenance Training
  • Split Casing for Easy Rotating Assembly
    Inspection or Changeover
  • Qualified Experienced Service Technicians
  • Low Vibration Levels
  • Electric Enclosure can Be Interchanged Either Side
  • 10mm Solid Bisalloy Impeller Blades
  • Motor & Fan Bearing Temperature and vibration Monitoring
  • Low Particle Build up Impeller Design
  • Stable Operation to over 8,500Pa
  • Low Noise Impeller Design
  • Guarded Heavy Duty Cable Tray
  • High Aerodynamic Efficiency
  • Low Maintenance Design
  • High Volume & Pressure Output
  • 160kW 2990RPM Ex’d 1000VMotor
  • Oversize Bearings
  • Comprehensive Equipment Dossier
  • Latest Generation Machine Watch Electrics


Optional Extras

Additional Features

  • 1000v Variable Speed Drive
  • Gas Monitoring
  • Higher or Lower
    Capacity Designs
  • Alternate Motors
    (e.g. ABB / Toshiba / WEG)
  • Acoustic Silencers
  • Dilution Dampers
  • Onboard lockage Storage Boxes
  • Crash Cage Rated for Lifting
  • Tow Hitch
  • Removable Trickle Stone Duster
  • Corner Jacks
  •  Fire Suppression
