Parts Illustration

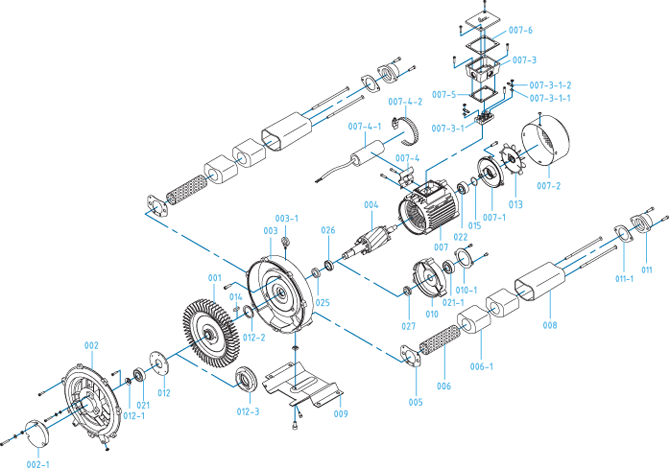

Side Channel Blower Parts Illustration

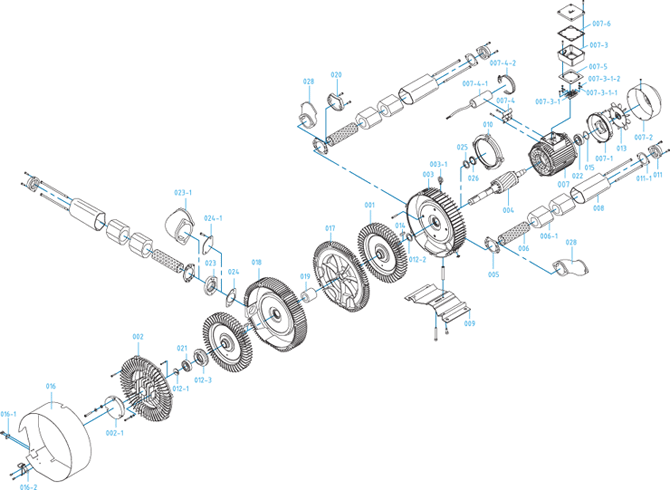

Side Channel Blower Parts Illustration-II

Item Parts Name Item Parts Name Item Parts Name Item Parts Name Item Parts Name Item Parts Name
001 Impellar 007 Motor 007-4-2 Steel clip 012 Bearing Washer 016-2 Buckle (down) 023-1 90 extend pipe
002 Compressor
cover
007-1 Motor cover 007-5 Terminal box washer 012-1 Washer 017 Middle compressor cover 024 Silencer socket washer
002-1 Front bearing cover 007-2 Fan Cover 007-6 Terminal cover washer 012-2 Washer 018 Middle compressor housing 024-1 Cover
003 Compressor Housing 007-3 Terminal box & cover 008 Silencer housing 012-3 Bearing Socket 019 Imeller fixing set 025 Cotton seal
003-1 Bronze ring 007-3-1 Wire Socket 009 Mounting plate 013 Fan 020 Outlet cover 026 Oil seal
004 Rotor 007-33-1-1 Fixed slice 010 Middle motor cover 014 Rotor pin 021 Front bearing 027 VA-seal (water proof)
005 Silencer washer 007-3-1-2 Wire connection slice 010-1 Bearing washer 015 Ware washer 021-1 Front bearing (water proof) 028 Extend pipe
006 Silencer mesh pipe 007-4 Capacitor washer 011 Inlet/outlet 016 Protection steel skin 022 Rave bearing
006-1 Silencer sponge 007-4-1 Capacitor 011-1 Inlet/outlet washer 016-1 Buckle(up) 023 Silencer sock
