Single Phase 50Hz

Single Phase / Single Stage

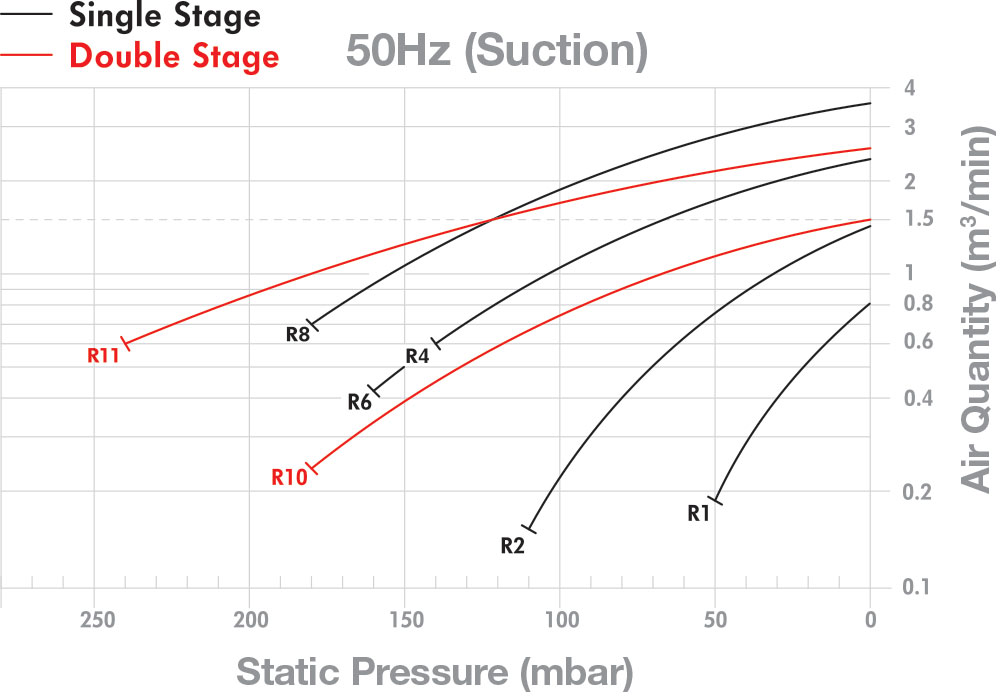

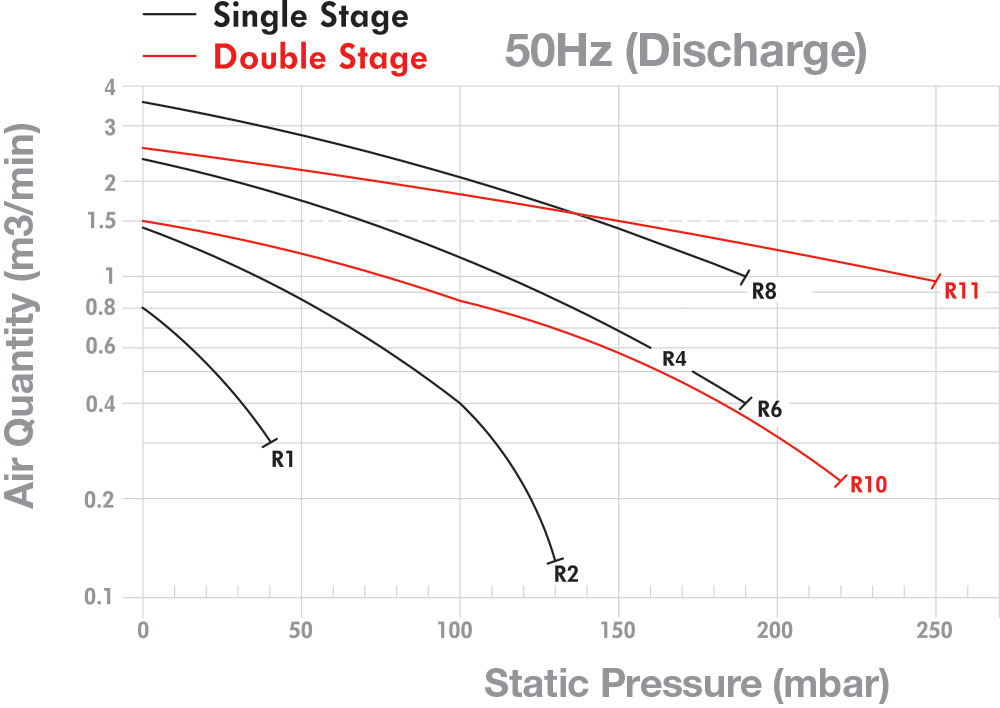

Curve No. Model Rated Output (KW) Voltage (v) Curent (a) Voltage (v) Current (a) Static Pressure Suction/Discharge (mbar) Max Air Quality (m3/min) Noise (Noise dB(A)@1m) Weight (Kg) Pressure Relief Valve Type: RV-* Suction Filter
R1 HB-129 0.18 110-120 2.5 220-240 1.25 50/40 0.8 52 6.5 MF8
R2 HB-229 0.4 110-120 5.5 220-240 2.6 110/130 1.4 58 11.5 01*1/01*1 MF10
R4 HB-329 0.75 110-120 11 220-240 5.5 140/160 2.4 63 16 01*1/01*1 MF12
R6 HB-339 1.1 220-240 7 160/190 2.4 63 16.5 01*1/01*1 MF12
R8 HB-429 1.5 220-240 10 180/190 3.6 70 26 01*1/01*1 MF16
Single Phase / Double Stage
Curve No. Model Rated Output (KW) Voltage (v) Curent (a) Voltage (v) Current (a) Static Pressure Suction/Discharge (mbar) Max Air Quality (m3/min) Noise (Noise dB(A)@1m) Weight (Kg) Pressure Relief Valve Type: RV-* Suction Filter
R10 HB-2308 0.75 110-120 9.2 220-240 4.5 180/220 1.5 60 17.5 01*1/01*1 MF10
R11 HB-3315 1.5 220-240 10 240/250 2.6 66 28.5 01*1/01*1 MF12
