| Single Phase / Single Stage | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

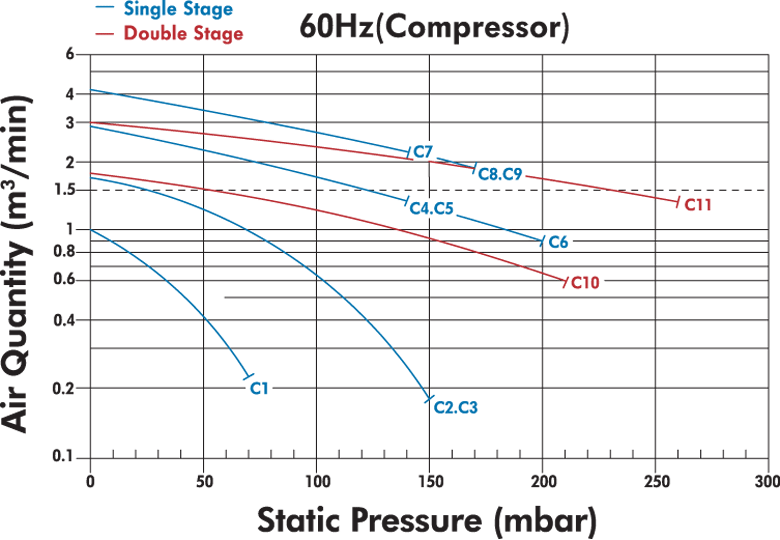

| Curve No. | Model | Rated Output (KW) | Voltage (v) | Curent (a) | Voltage (v) | Current (a) | Static Pressure Suction/Discharge (mbar) | Max Air Quality (m3/min) | Noise (Noise dB(A)@1m) | Weight (Kg) | Pressure Relief Valve Type: RV-* | Suction Filter |
| C1 | HB-129 | 0.2 | 110-120 | 2.55 | 220-240 | 1.28 | 70/70 | 1 | 55 | 6.5 | – | MF8 |
| C2 | HB-229 | 0.5 | 110-120 | 7.4 | 220-240 | 3.5 | 130/150 | 1.7 | 61 | 11.5 | 01*/01*1 | MF10 |
| C3 | HB-229L | 0.5 | 110-120 | 7.4 | 220-240 | 3.5 | 130/150 | 1.7 | 61 | 12 | 01*/01*1 | MF10 |
| C4 | HB-329 | 0.85 | 110-120 | 12 | 220-240 | 6 | 140/140 | 2.9 | 64 | 16 | 01*/01*1 | MF12 |
| C5 | HB-329-L | 0.85 | 110-120 | 12 | 220-240 | 6 | 140/140 | 2.9 | 64 | 16.5 | 01*/01*1 | MF12 |
| C6 | HB-339 | 1.3 | – | – | 220-240 | 7.4 | 180/200 | 2.9 | 64 | 16.5 | 01*/01*1 | MF12 |
| C7 | HB-429-2 | 1.3 | – | – | 220-240 | 9.5 | 150/140 | 4.2 | 73 | 26 | 01*/01*1 | MF16 |
| C8 | HB-429 | 1.75 | – | – | 220-240 | 10.8 | 180/170 | 4.2 | 73 | 26 | 01*/01*1 | MF16 |
| C9 | HB-429-L | 1.75 | – | – | 220-240 | 10.8 | 180/170 | 4.2 | 73 | 26.5 | 01*/01*1 | MF16 |
| Single Phase / Double Stage | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Curve No. | Model | Rated Output (KW) | Voltage (v) | Curent (a) | Voltage (v) | Current (a) | Static Pressure Suction/Discharge (mbar) | Max Air Quality (m3/min) | Noise (Noise dB(A)@1m) | Weight (Kg) | Pressure Relief Valve Type: RV-* | Suction Filter |
| C10 | HB-2308 | 0.85 | 110-120 | 11 | 220-240 | 5.4 | 200/240 | 1.8 | 66 | 17.5 | 01*/01*1 | MF10 |
| C11 | HB-3315 | 1.75 | – | – | 220-240 | 10.8 | 250/260 | 3 | 69 | 28.5 | 01*/01*1 | MF12 |
